OBTAINED: Driver-Test psychotechnical test for MSX

WANTED: Dump of the Driver-Test psychotechnical test for MSX, seen at some Spanish driving schools, model “AESE Driver Test N-845”.

UPDATE: The ROM of the cartridge has been dumped by Manuel Pazos.

On the one hand, the ROM is not very well programmed and assumes that the computer’s RAM is in a certain slot/subslot. I guess they did this knowing that they were selling the cartridge with a couple of certain MSX models.

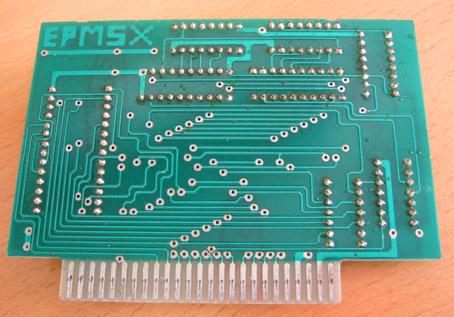

On the other hand, there is the hardware of the cartridge and the levers/pedals/buttons.

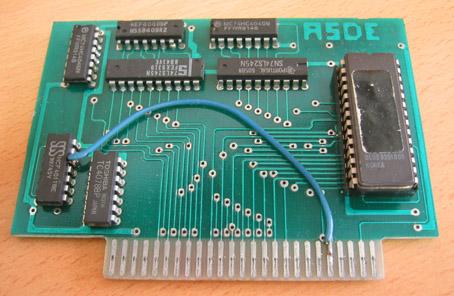

It’s been a few years now, but if I remember correctly, the cartridge had a couple of counters (ICs type 4040) connected to the cartridge’s clock signal. And the counter value was read through a port (#00?). So basically it was a timer.

The levers I think functioned as paddles. And the pedals and push buttons were connected to the joystick directions/buttons.

But as I say, don’t take anything at face value, it’s been a long time since I’ve looked at it.

Temporary ROM link: https://www.mediafire.com/file/n7g6pmyc4ad9nd8/Driver- Test_MSX.zip/file
